High-Voltage Capacitors
Single-Phase Single-Bushing High-Voltage Capacitors

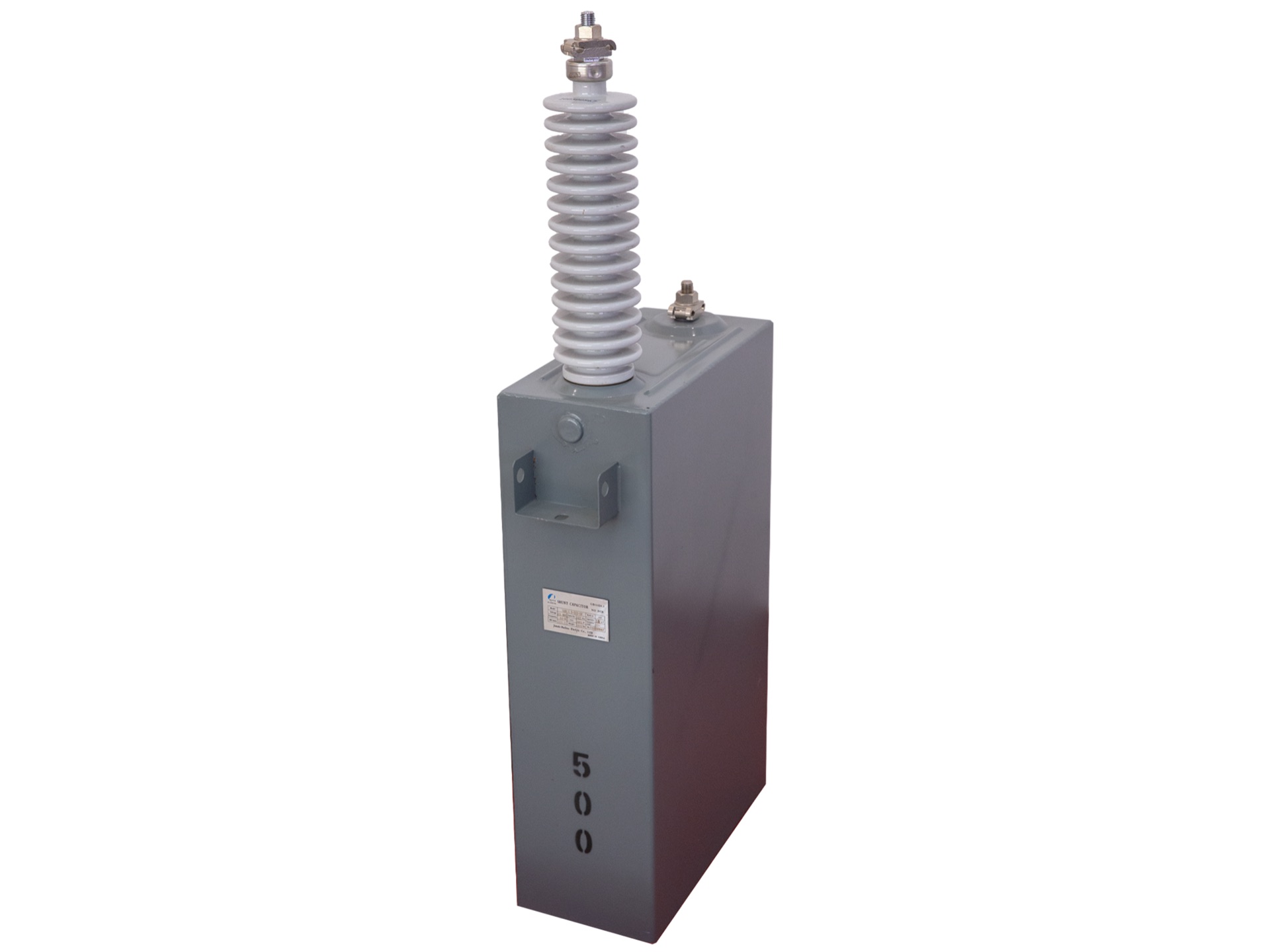

Photographs show series configurations. Confirm construction and dimensions against the selected model drawing.
Rated Voltage (Un)13.8 kV
Reactive Power (Qn)200–500 kvar
Capacitance (Cn)2.79–6.97 μF
Ranges describe the series. See the model table for individual ratings; project requirements are confirmed separately.
Applications
- Distribution networks
- Industrial PFC
Technical specifications
| Parameter | Value |
|---|---|
| Rated Voltage (Un) | 13.8 kV |
| Reactive Power (Qn) | 200–500 kvar |
| Capacitance (Cn) | 2.79–6.97 μF |
| Rated Frequency (Fn) | 50 / 60 Hz |
| Configuration | Single-phase · single bushing |
| Standards | GB/T 11024 · IEC 60871 |
Product models
The catalogue notation 50(60) Hz does not confirm that the same ratings apply at both frequencies. Confirm frequency, capacitance and reactive power together for the ordered version.
L, W, H, h and h1 follow the selected model drawing. H may be the case height, not the overall height including terminals; confirm the full installation envelope and clearances.
| № | Model | Un (kV) | Qn (kVAR) | Fn (Hz) | In (A) | Cn (μF) | L (mm) | W (mm) | H (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | BAM13.8-200-1W-1P | 13.8 | 200 | 50(60) | 14.5 | 2.79 | 343 | 138 | 430 | Enquire |
| 2 | BAM13.8-500-1W-1P | 13.8 | 500 | 50(60) | 36.2 | 6.97 | 383 | 179 | 650 | Enquire |
Un (kV) — Rated voltageQn (kVAR) — Reactive powerFn (Hz) — FrequencyIn (A) — Rated currentCn (μF) — CapacitanceL (mm) — Dimension L (see model drawing)W (mm) — Dimension W (see model drawing)H (mm) — Height H (see model drawing)
