Pulse Capacitors

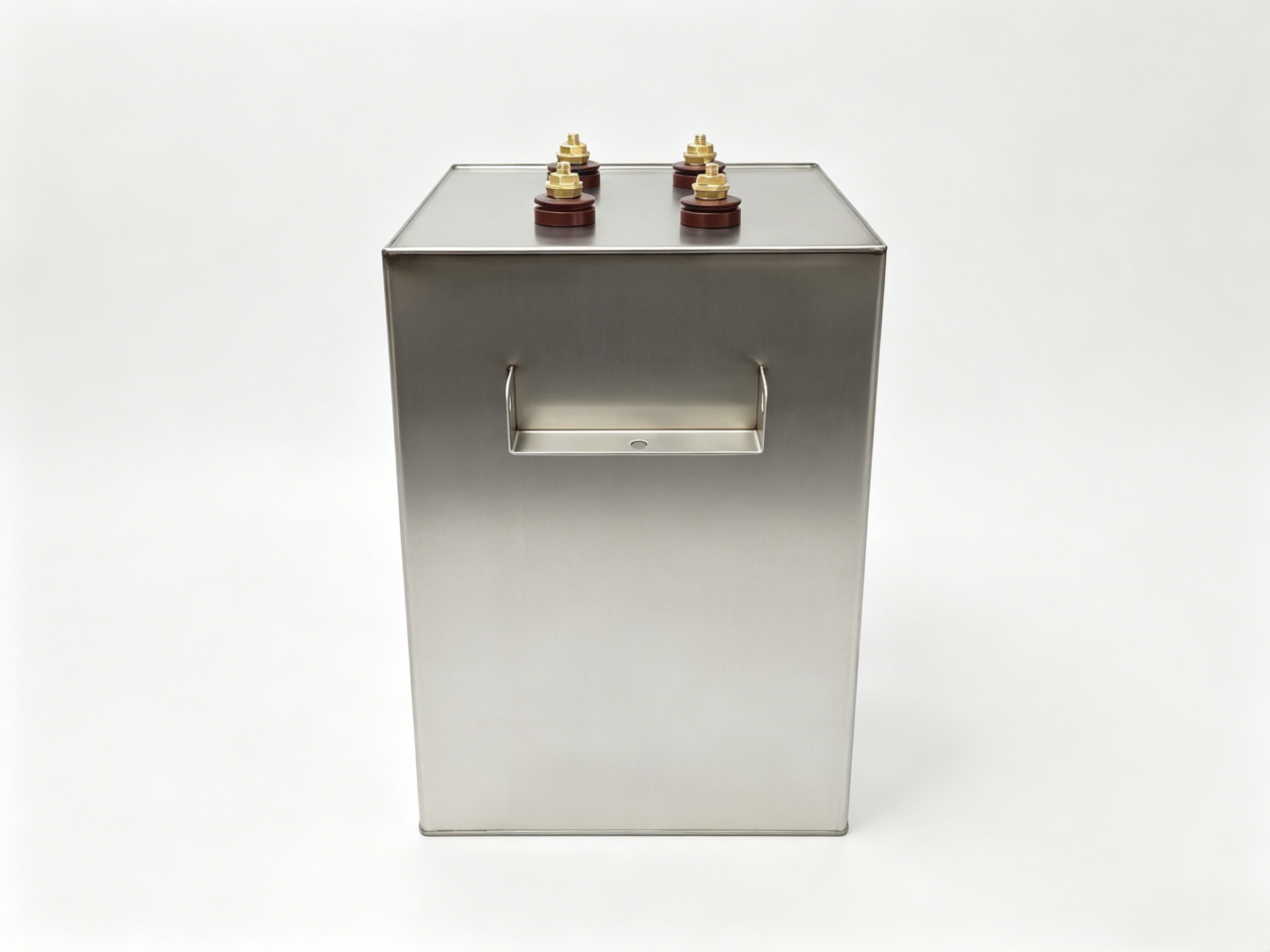

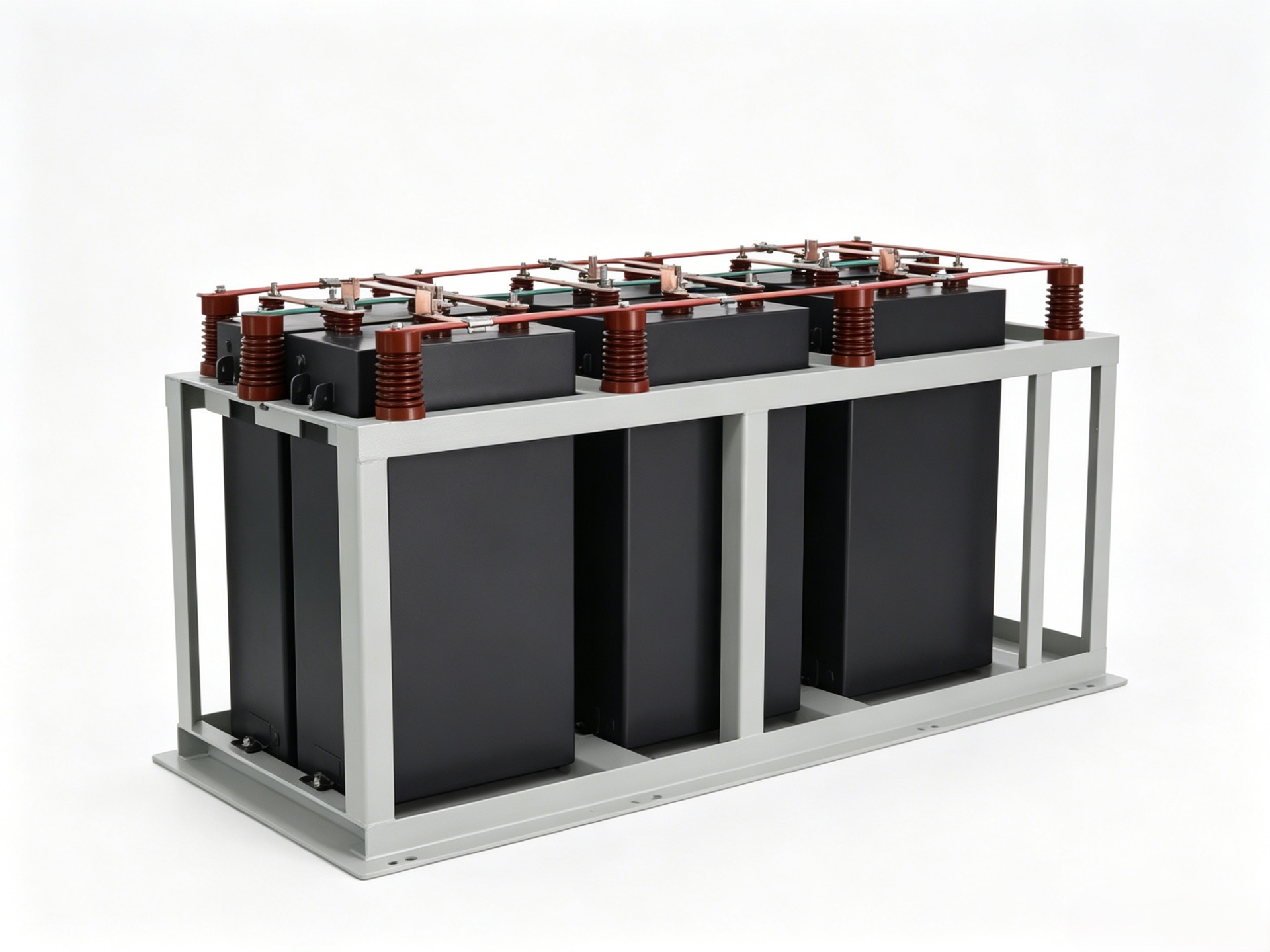

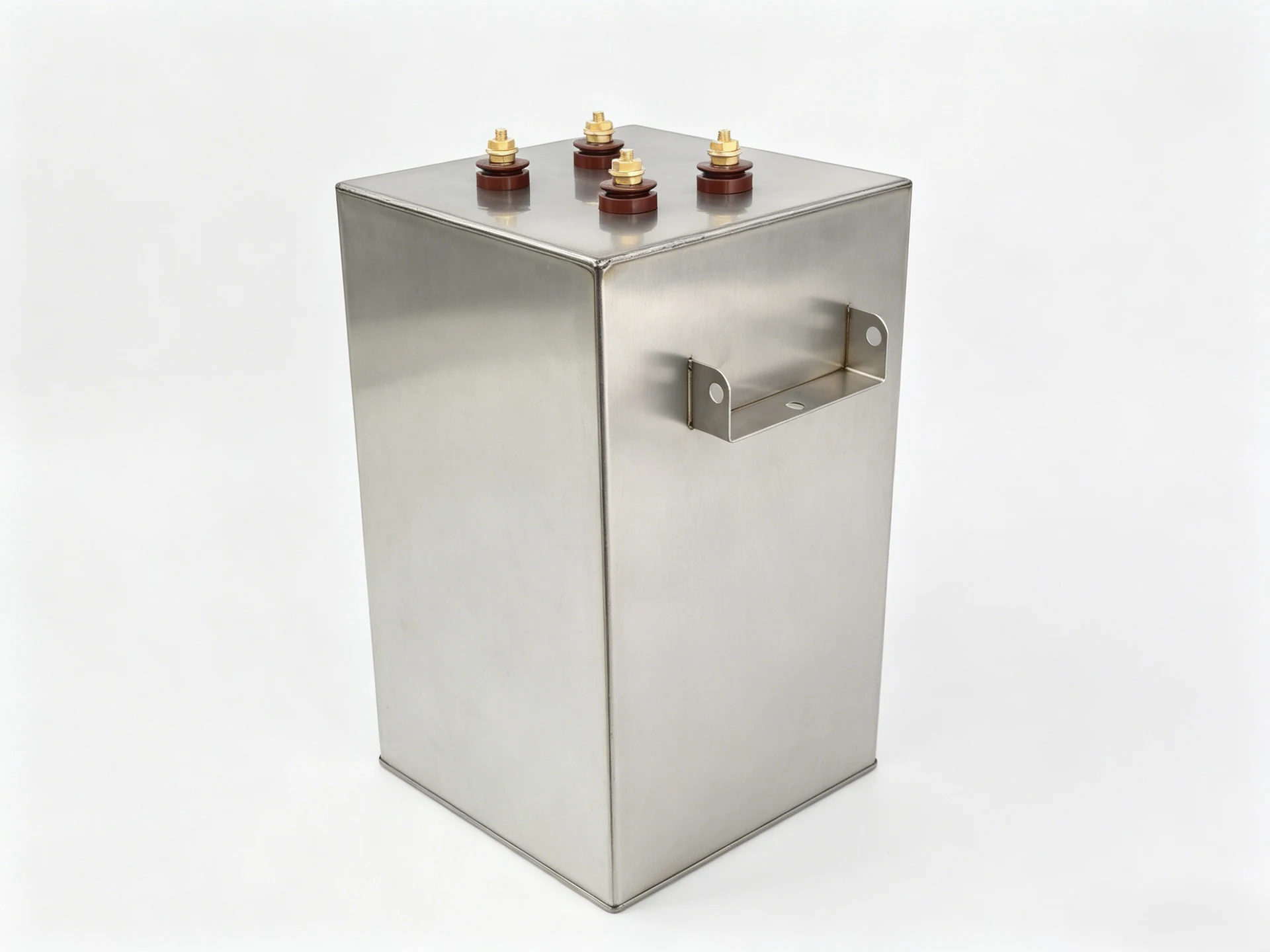

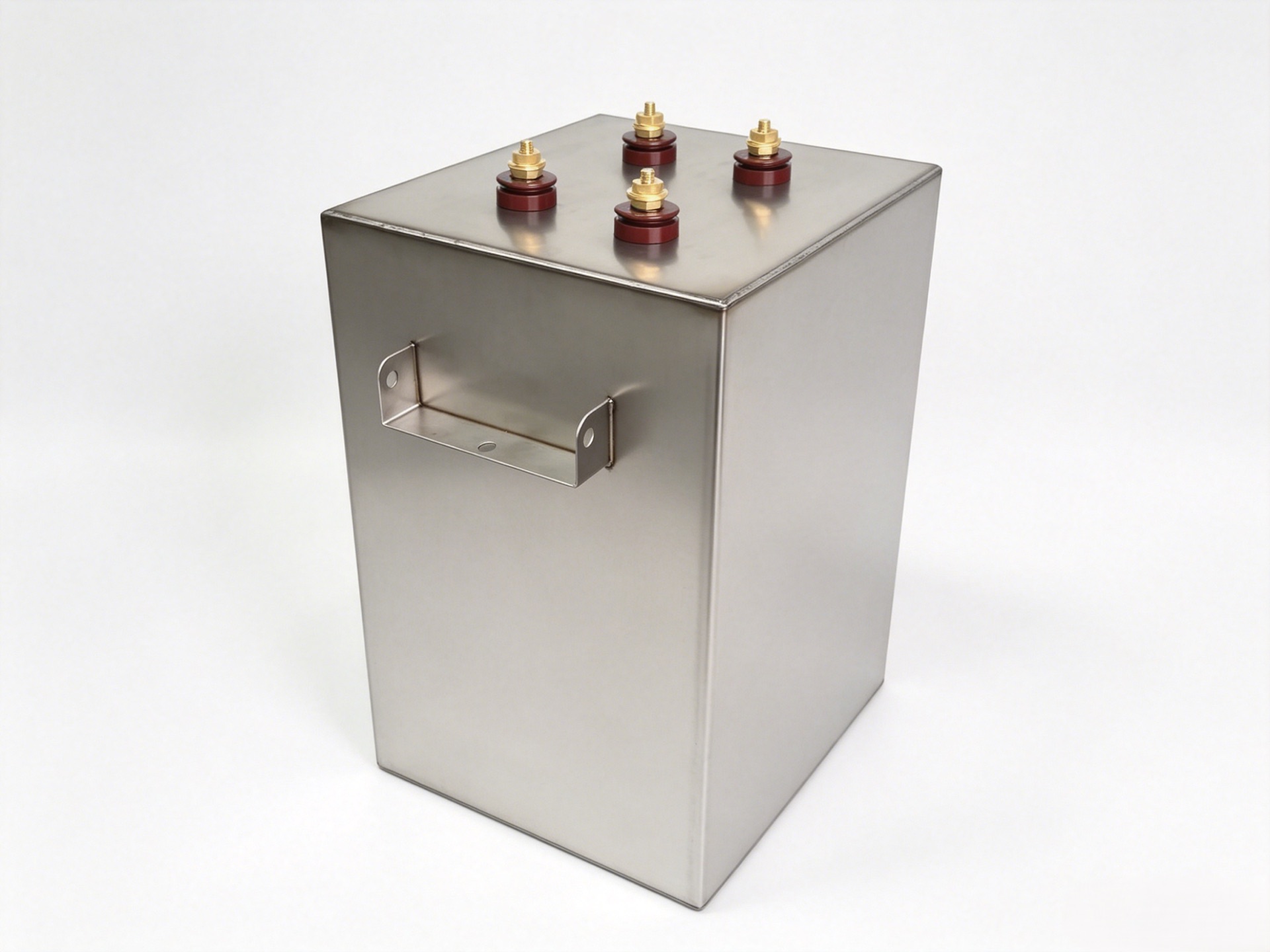

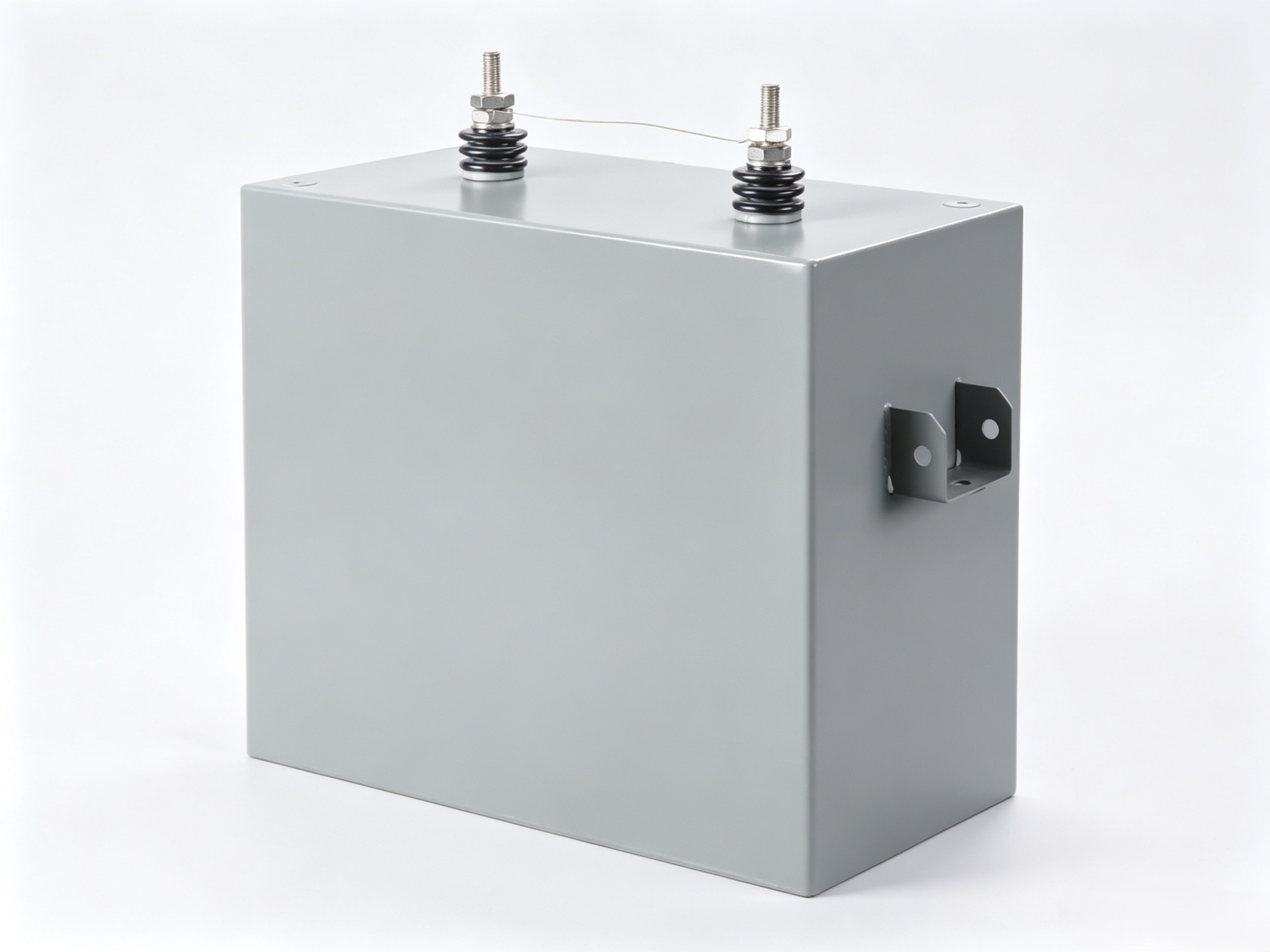

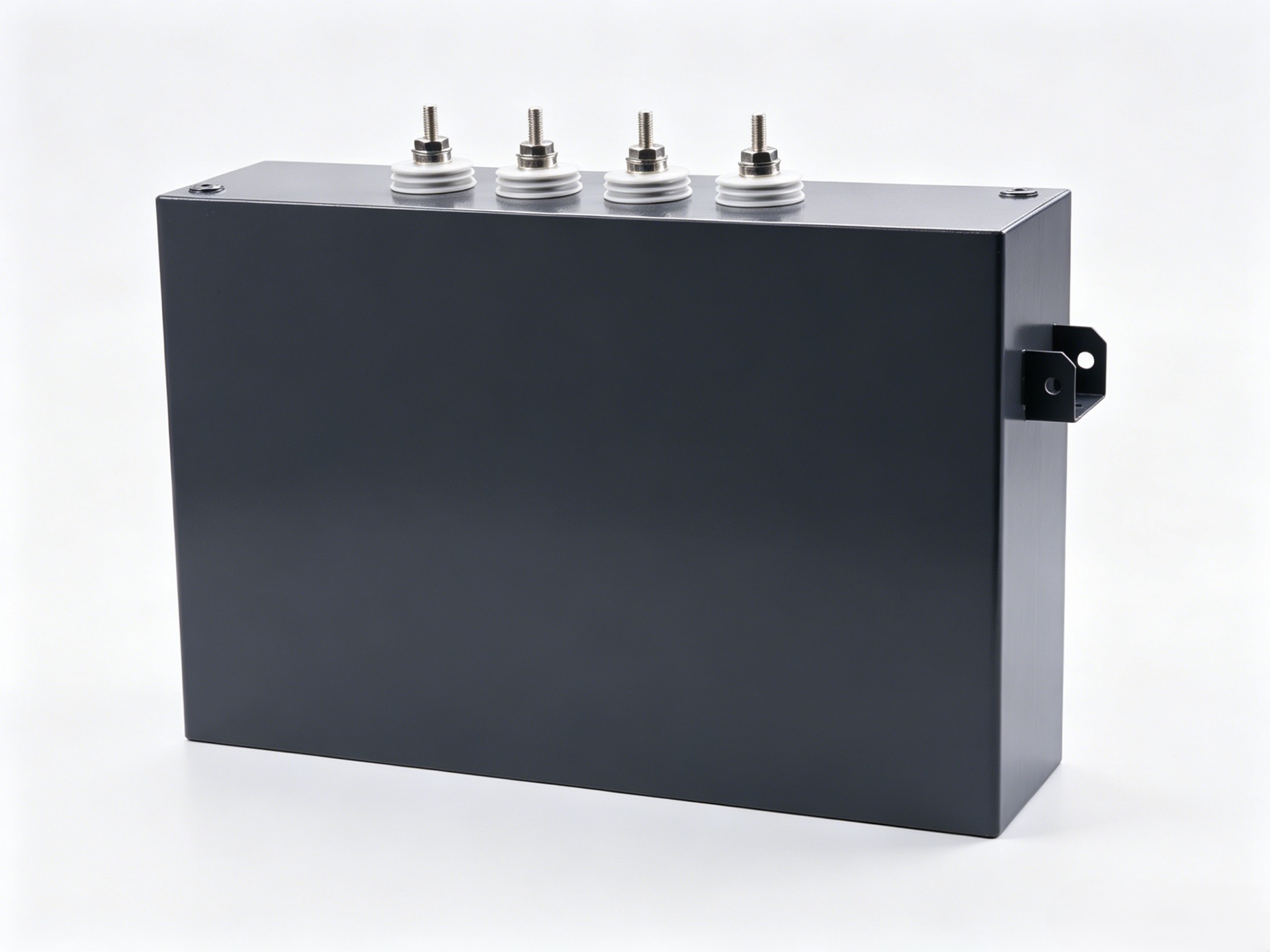

Photographs show series configurations. Confirm construction and dimensions against the selected model drawing.

Rated Voltage (Un)10–45 kV
Capacitance (Cn)12–120 μF
StructureLow inductance (low ESL) · low ESR

Ranges describe the series. See the model table for individual ratings; project requirements are confirmed separately.

Pulse Capacitors

Pulse Capacitors

Pulse capacitors engineered for high peak discharge current applications, featuring low-inductance, low-ESR construction with high energy density and excellent pulse life.
Widely used in fusion energy, high-energy physics, pulsed power systems, electromagnetic forming, laser power supplies, and surge current test equipment.

Applications

  • Fusion energy
  • High-energy physics
  • Pulsed power systems
  • Electromagnetic forming
  • Laser power supplies
  • Surge current test equipment

Technical specifications

ParameterValue
Rated Voltage (Un) 10–45 kV
Capacitance (Cn) 12–120 μF
Structure Low inductance (low ESL) · low ESR
Discharge Capability High peak discharge current · high energy density
Standards Per applicable project specification

Product models

L, W, H, h and h1 follow the selected model drawing. H may be the case height, not the overall height including terminals; confirm the full installation envelope and clearances.

№ModelUn (kV)Cn (μF)L (mm)W (mm)H (mm)
1MAM10-751075305284400Enquire
2MAM10-12010120305284560Enquire
3MAM15-451545305284400Enquire
4MAM15-701570305284550Enquire
5MAM18-601860430385700Enquire
6MAM20-202020305284430Enquire
7MAM20-302030305284550Enquire
8MAM25-302530430360450Enquire
9MAM25-402540430360550Enquire
10MAM30-203020430360430Enquire
11MAM30-303030430360550Enquire
12MAM35-153515430360430Enquire
13MAM35-253525430360630Enquire
14MAM40-154015430360530Enquire
15MAM40-204020430360630Enquire
16MAM45-124512430360530Enquire
17MAM45-154515430360630Enquire
Un (kV) — Rated voltageCn (μF) — CapacitanceL (mm) — Dimension L (see model drawing)W (mm) — Dimension W (see model drawing)H (mm) — Height H (see model drawing)
Construction & installation

From electrical performance
to installation details.

Low inductance (low ESL) · low ESR

High peak discharge current · high energy density

Terminals & installation dimensions

Review rated voltage, capacitance and L / W / H dimensions, then ask HAOQI to coordinate confirmation of terminal arrangements and installation drawings.

Explore dimensions by model
Pulse capacitor photograph showing terminals and mounting bracket
Pulse capacitor terminals and mounting bracket

Have a specific requirement?

Ask HAOQI to coordinate specification review or request the relevant product documents.
