Induction Heating Capacitors
Double-Circuit Water-Cooled Induction Heating Capacitors

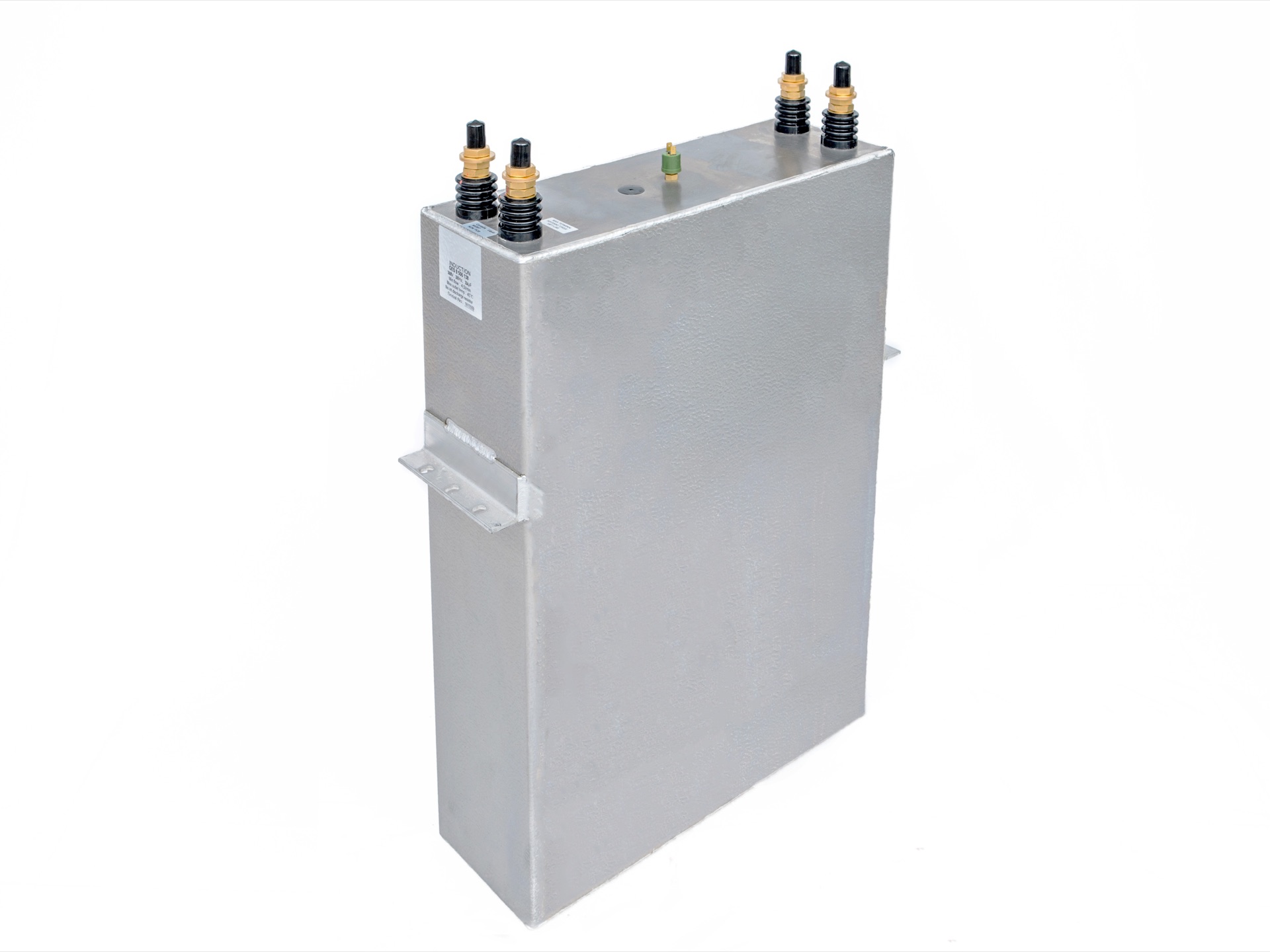

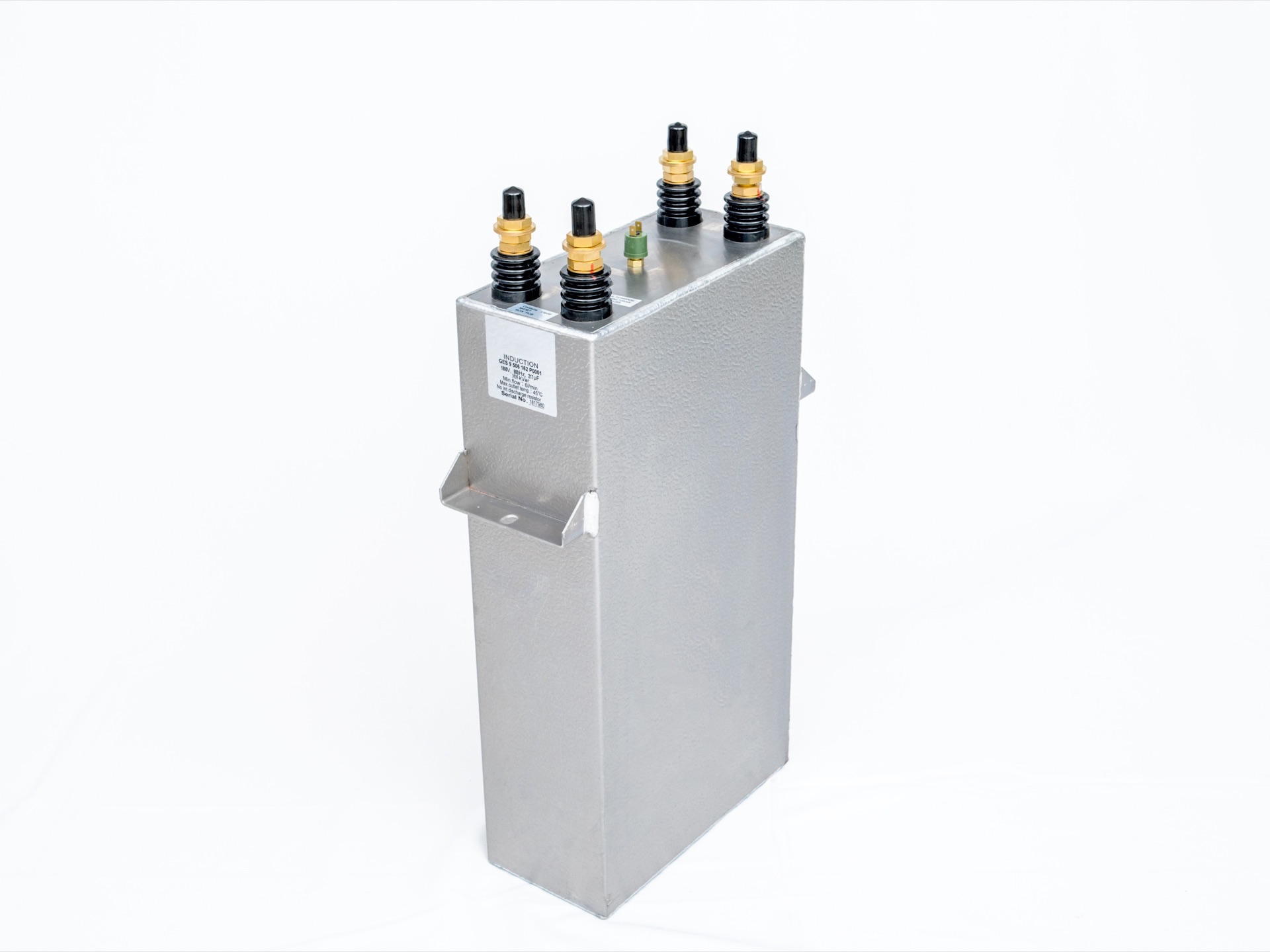

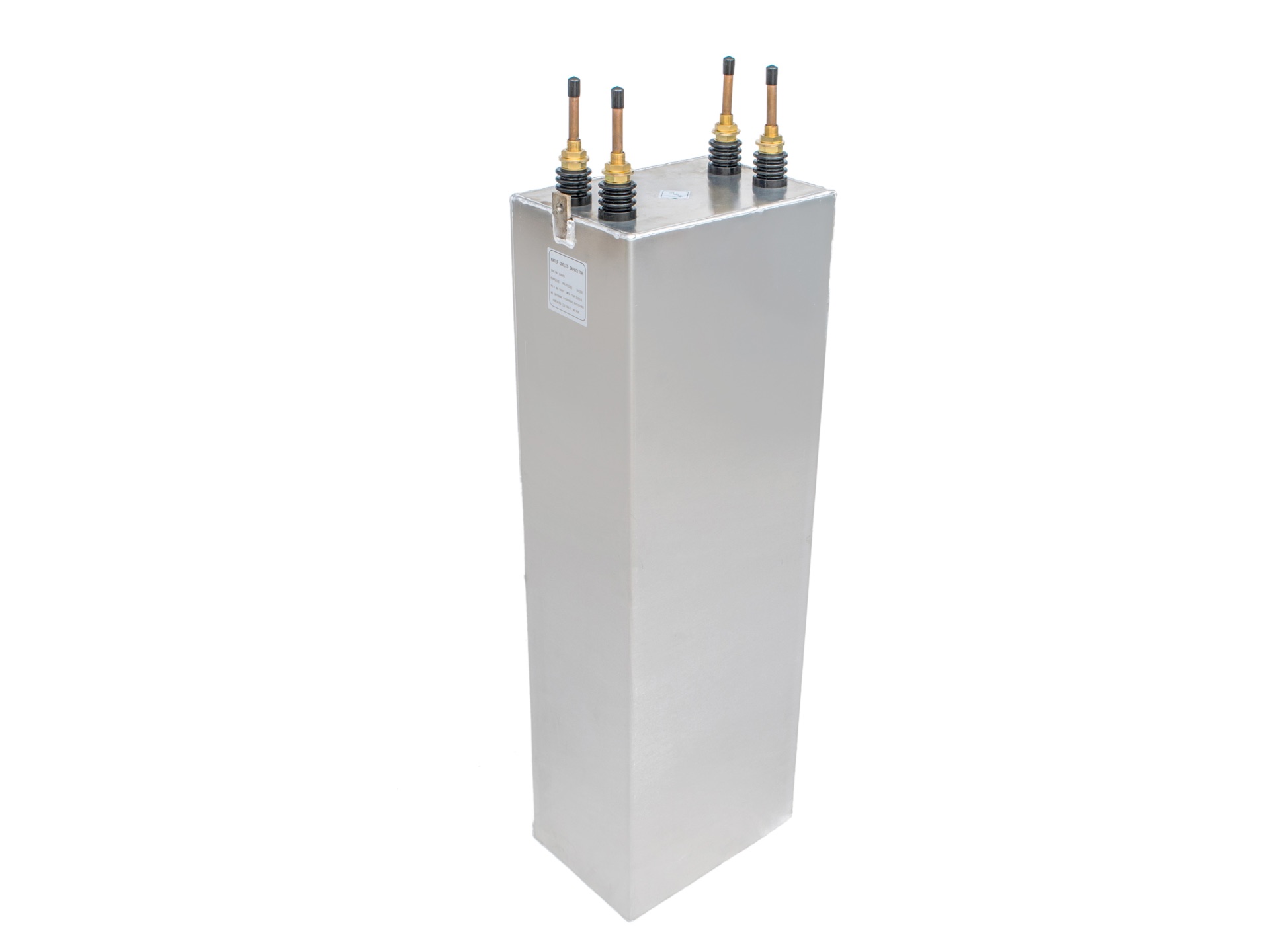

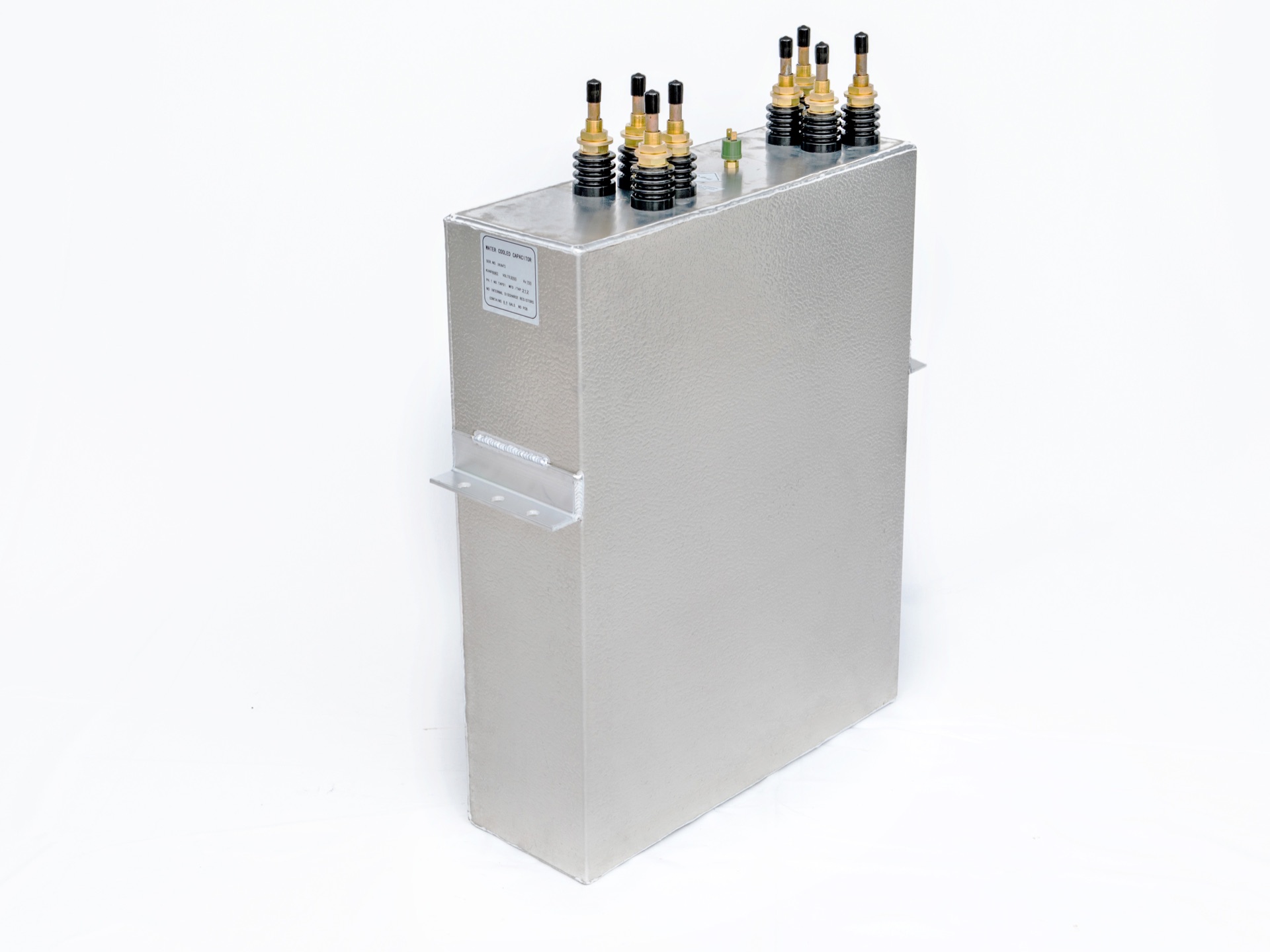

Photographs show series configurations. Confirm construction and dimensions against the selected model drawing.
Rated Voltage (Un)0.6–6.3 kV
Reactive Power (Qn)500–13400 kvar
Frequency (Fn)150–1500 Hz
Ranges describe the series. See the model table for individual ratings; project requirements are confirmed separately.
Applications
- Large induction melting furnaces
- Heavy-duty forging
- Foundry production lines
- High-power continuous melting
Technical specifications
| Parameter | Value |
|---|---|
| Rated Voltage (Un) | 0.6–6.3 kV |
| Reactive Power (Qn) | 500–13400 kvar |
| Frequency (Fn) | 150–1500 Hz |
| Rated Current (In) | ≤ 4470 A |
| Cooling Method | Water cooled (dual independent circuits) |
| Standards | GB/T 3984 · IEC 60110 |
Product models
L, W, H, h and h1 follow the selected model drawing. H may be the case height, not the overall height including terminals; confirm the full installation envelope and clearances.
Electrical groups and physical terminals are different counts. Confirm their arrangement against the connection drawing.
| № | Model | Un (V) | Qn (kVAR) | Fn (Hz) | In (A) | Cn (μF) | L (mm) | W (mm) | H (mm) | Groups | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | RAM0.6-500-0.25S | 600 | 500 | 250 | 833 | 884.19 | 343 | 175 | 545 | 1 | Enquire |
| 2 | RAM0.6-850-1S | 600 | 850 | 1000 | 1417 | 375.78 | 343 | 175 | 400 | 1 | Enquire |
| 3 | RAM0.65-2000-0.3S | 650 | 2000 | 300 | 3077 | 2511.32 | 559 | 203 | 711 | 1 | Enquire |
| 4 | RAM0.75-2000-1S | 750 | 2000 | 1000 | 2667 | 565.88 | 343 | 175 | 400 | 1 | Enquire |
| 5 | RAM1.0-800-0.25S | 1000 | 800 | 250 | 800 | 509.3 | 440 | 191 | 780 | 1 | Enquire |
| 6 | RAM1.0-1500-0.3S | 1000 | 1500 | 300 | 1500 | 795.77 | 559 | 175 | 500 | 1 | Enquire |
| 7 | RAM1.2-3000-0.7S | 1200 | 3000 | 700 | 2500 | 473.68 | 343 | 175 | 580 | 1 | Enquire |
| 8 | RAM1.2-2000-1S | 1200 | 2000 | 1000 | 1667 | 221.05 | 343 | 175 | 300 | 1 | Enquire |
| 9 | RAM1.2-1200-1.2S | 1200 | 1200 | 1200 | 1000 | 110.52 | 343 | 150 | 270 | 1 | Enquire |
| 10 | RAM1.5-1600-0.15S | 1500 | 1600 | 150 | 1067 | 754.51 | 559 | 203 | 590 | 1 | Enquire |
| 11 | RAM1.5-3000-0.5S | 1500 | 3000 | 500 | 2000 | 424.41 | 343 | 175 | 545 | 1 | Enquire |
| 12 | RAM1.6-3500-0.5S | 1600 | 3500 | 500 | 2188 | 435.19 | 343 | 175 | 615 | 1 | Enquire |
| 13 | RAM1.6-3820-0.7S | 1600 | 3820 | 700 | 2388 | 339.27 | 343 | 203 | 500 | 1 | Enquire |
| 14 | RAM1.7-3000-0.3S | 1600 | 3000 | 300 | 1875 | 621.7 | 343 | 205 | 690 | 1 | Enquire |
| 15 | RAM1.7-3000-0.5S | 1600 | 3000 | 500 | 1875 | 373.02 | 343 | 175 | 500 | 1 | Enquire |
| 16 | RAM1.7-4000-1S | 1700 | 4000 | 1000 | 2353 | 220.28 | 343 | 175 | 615 | 1 | Enquire |
| 17 | RAM1.8-4000-0.25S | 1800 | 4000 | 250 | 2222 | 785.95 | 440 | 230 | 830 | 1 | Enquire |
| 18 | RAM1.8-4000-0.5S | 1800 | 4000 | 500 | 2222 | 392.98 | 343 | 175 | 650 | 1 | Enquire |
| 19 | RAM1.8-2000-1S | 1800 | 2000 | 1000 | 1111 | 98.24 | 343 | 150 | 360 | 1 | Enquire |
| 20 | RAM1.8-3000-1S | 1800 | 3000 | 1000 | 1667 | 147.37 | 343 | 175 | 435 | 1 | Enquire |
| 21 | RAM2.4-2000-0.7S | 2400 | 2000 | 700 | 833 | 78.95 | 343 | 175 | 300 | 1 | Enquire |
| 22 | RAM2.4-3000-0.7S | 2400 | 3000 | 700 | 1250 | 118.42 | 343 | 175 | 435 | 1 | Enquire |
| 23 | RAM2.5-3000-0.15S | 2500 | 3000 | 150 | 1200 | 509.3 | 559 | 203 | 787 | 1 | Enquire |
| 24 | RAM2.5-6000-1S | 2500 | 6000 | 1000 | 2400 | 152.79 | 559 | 175 | 400 | 1 | Enquire |
| 25 | RAM2.5-4850-1.5S | 2500 | 4850 | 1500 | 1940 | 82.34 | 343 | 175 | 360 | 1 | Enquire |
| 26 | RAM2.8-5000-0.3S | 2800 | 5000 | 300 | 1786 | 338.34 | 559 | 203 | 711 | 1 | Enquire |
| 27 | RAM2.8-5000-0.4S | 2800 | 5000 | 400 | 1786 | 253.75 | 559 | 203 | 590 | 1 | Enquire |
| 28 | RAM2.8-6666-0.5S | 2800 | 6666 | 500 | 2381 | 270.64 | 559 | 203 | 590 | 1 | Enquire |
| 29 | RAM2.9-5000-0.3S | 2900 | 5000 | 300 | 1724 | 315.41 | 559 | 203 | 711 | 1 | Enquire |
| 30 | RAM3.0-3000-0.3S | 3000 | 3000 | 300 | 1000 | 176.84 | 343 | 175 | 760 | 1 | Enquire |
| 31 | RAM3.0-6000-0.5S | 3000 | 6000 | 500 | 2000 | 212.21 | 559 | 175 | 590 | 1 | Enquire |
| 32 | RAM3.0-7000-1S | 3000 | 7000 | 1000 | 2333 | 123.79 | 559 | 175 | 450 | 1 | Enquire |
| 33 | RAM3.0-13400-1.2S | 3000 | 13400 | 1200 | 4467 | 197.47 | 559 | 203 | 711 | 1 | Enquire |
| 34 | RAM3.05-5450-0.7S | 3050 | 5450 | 700 | 1787 | 133.2 | 559 | 175 | 590 | 1 | Enquire |
| 35 | RAM3.05-7500-0.7S | 3050 | 7500 | 700 | 2459 | 183.31 | 559 | 175 | 711 | 1 | Enquire |
| 36 | RAM3.2-5000-0.3S | 3200 | 5000 | 300 | 1563 | 259.04 | 559 | 203 | 711 | 1 | Enquire |
| 37 | RAM3.2-3000-0.5S | 3200 | 3000 | 500 | 938 | 93.25 | 559 | 150 | 460 | 1 | Enquire |
| 38 | RAM3.5-6000-0.5S | 3500 | 6000 | 500 | 1714 | 155.91 | 559 | 203 | 590 | 1 | Enquire |
| 39 | RAM3.5-3000-1S | 3500 | 3000 | 1000 | 857 | 38.98 | 343 | 175 | 400 | 1 | Enquire |
| 40 | RAM4.0-8333-0.5S | 4000 | 8333 | 500 | 2083 | 165.78 | 559 | 203 | 711 | 1 | Enquire |
| 41 | RAM4.0-5416-0.65S | 4000 | 5416 | 650 | 1354 | 82.88 | 343 | 175 | 690 | 1 | Enquire |
| 42 | RAM4.2-5000-0.4S | 4200 | 5000 | 400 | 1190 | 112.78 | 559 | 203 | 590 | 1 | Enquire |
| 43 | RAM4.4-8470-0.7S | 4400 | 8470 | 700 | 1925 | 99.47 | 559 | 175 | 690 | 1 | Enquire |
| 44 | RAM4.6-5350-0.3S | 4600 | 5350 | 300 | 1163 | 134.13 | 559 | 203 | 787 | 1 | Enquire |
| 45 | RAM5.2-3000-0.15S | 5200 | 3000 | 150 | 577 | 117.72 | 559 | 203 | 787 | 1 | Enquire |
| 46 | RAM6.3-3000-0.15S | 6300 | 3000 | 150 | 476 | 80.2 | 559 | 203 | 787 | 1 | Enquire |
Un (V) — Rated voltageQn (kVAR) — Reactive powerFn (Hz) — FrequencyIn (A) — Rated currentCn (μF) — CapacitanceL (mm) — Dimension L (see model drawing)W (mm) — Dimension W (see model drawing)H (mm) — Height H (see model drawing)
