Special Application Capacitors
VSC-HVDC Application Capacitors

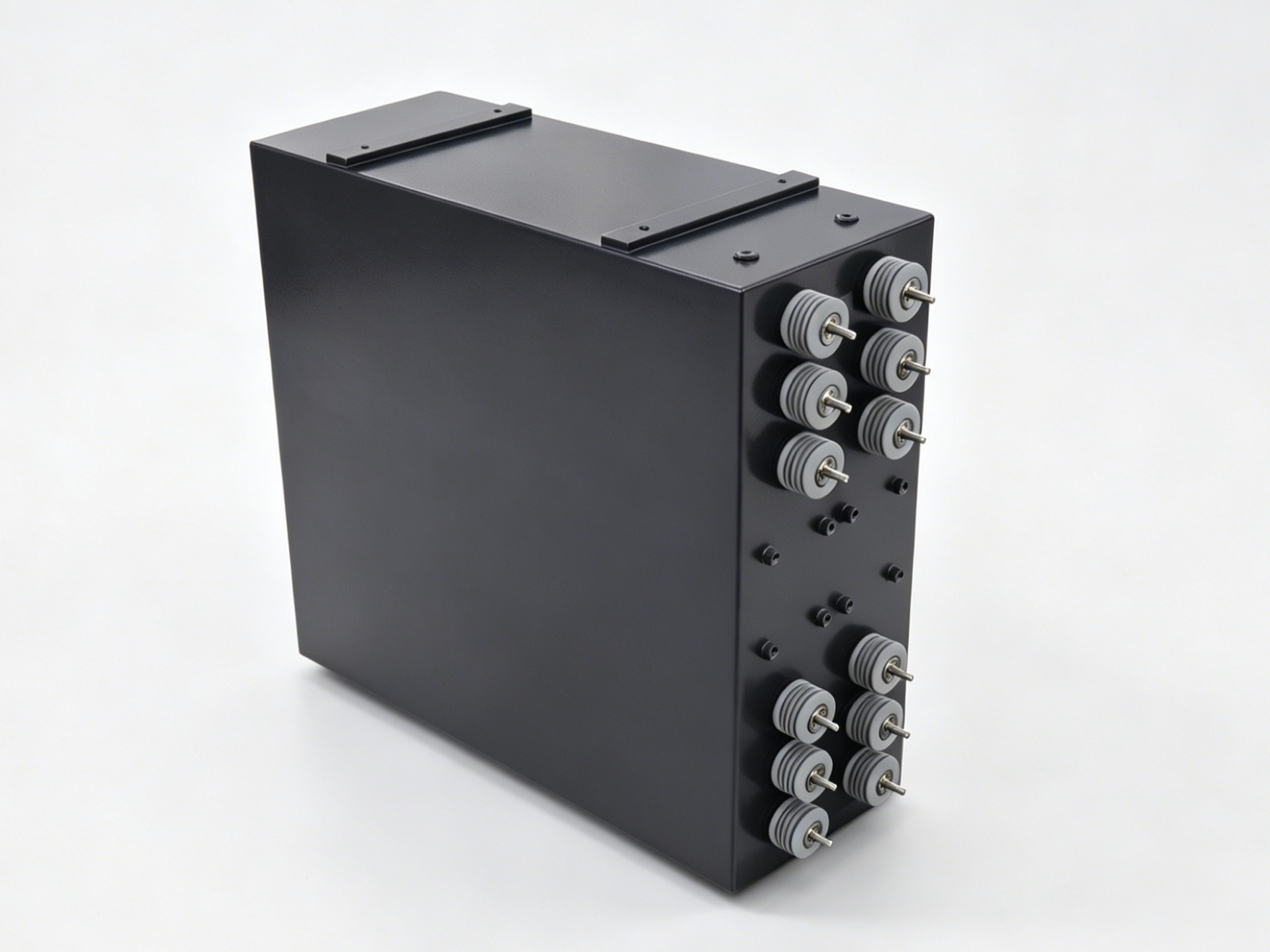

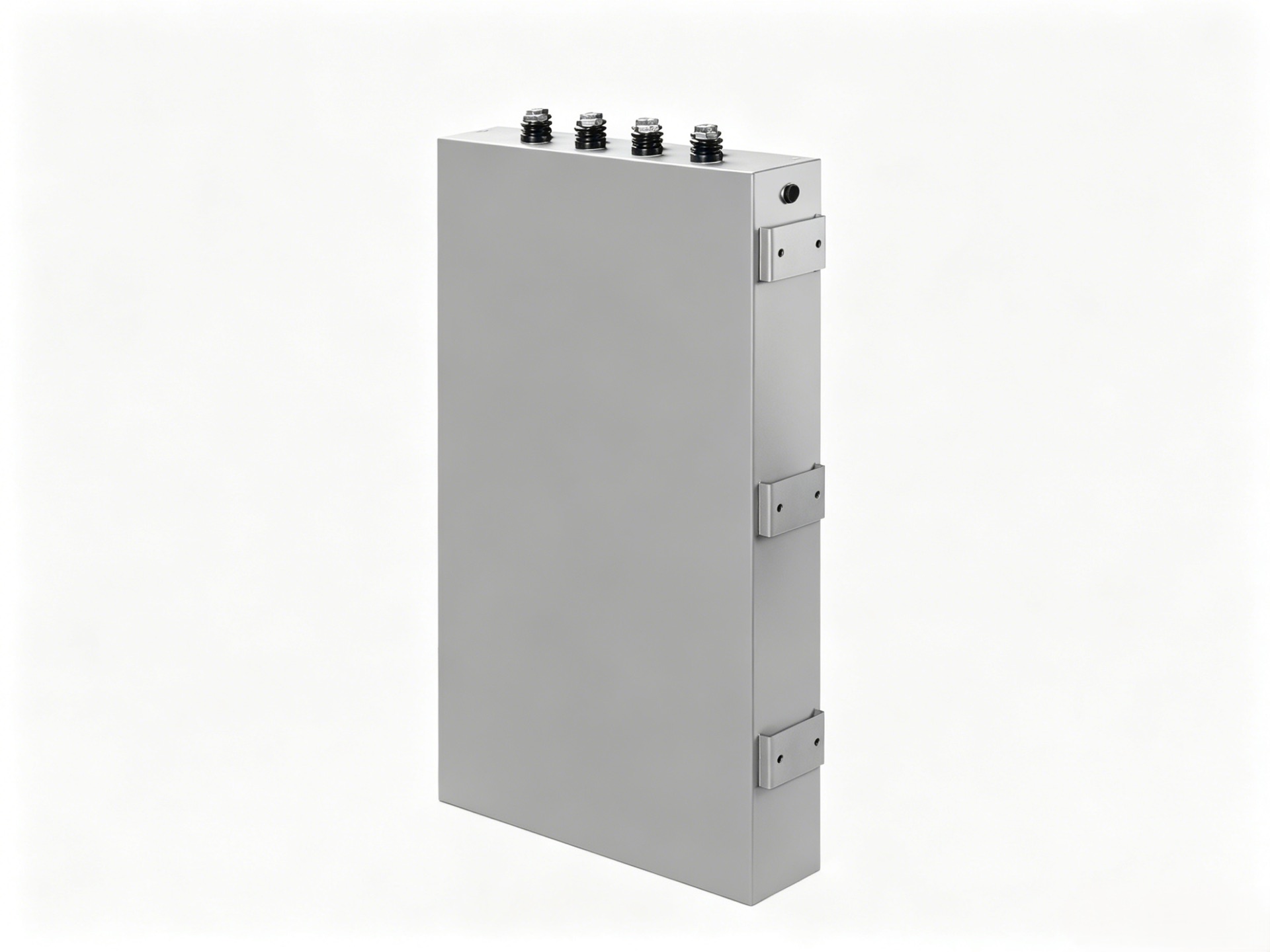

Photographs show series configurations. Confirm construction and dimensions against the selected model drawing.
Rated Voltage (Un)2.1–2.8 kV
Rated Current (In)700–1300 A
Capacitance (Cn)7500–15000 μF
Ranges describe the series. See the model table for individual ratings; project requirements are confirmed separately.
Applications
- MMC sub-module DC support
- VSC-HVDC transmission
- Offshore wind power export
Technical specifications
| Parameter | Value |
|---|---|
| Rated Voltage (Un) | 2.1–2.8 kV |
| Rated Current (In) | 700–1300 A |
| Capacitance (Cn) | 7500–15000 μF |
| Function | MMC sub-module DC support & filtering |
| Selection checks | Confirm ripple current, temperature rise and service-life requirements |
| Standards | Per applicable project specification |
Product models
L, W, H, h and h1 follow the selected model drawing. H may be the case height, not the overall height including terminals; confirm the full installation envelope and clearances.
Electrical groups and physical terminals are different counts. Confirm their arrangement against the connection drawing.
| № | Model | Un (kV) | In (A) | Cn (μF) | L (mm) | W (mm) | H (mm) | Terminals | |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2.1-10000 | 2.1 | 700 | 10000 | 515 | 220 | 700 | 8 | Enquire |
| 2 | 2.2-11000 | 2.2 | 700 | 11000 | 515 | 220 | 850 | 8 | Enquire |
| 3 | 2.8-7500 | 2.8 | 750 | 7500 | 685 | 147 | 1095 | 8 | Enquire |
| 4 | 2.8-15000 | 2.8 | 1300 | 15000 | 750 | 315 | 850 | 12 | Enquire |
Un (kV) — Rated voltageIn (A) — Rated currentCn (μF) — CapacitanceL (mm) — Dimension L (see model drawing)W (mm) — Dimension W (see model drawing)H (mm) — Height H (see model drawing)
